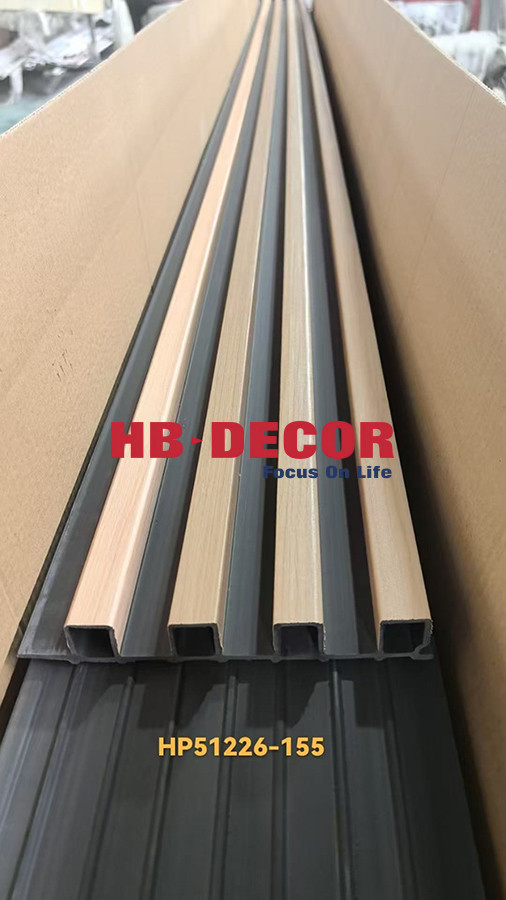

Outdoor Wpc Wall Panel With Concealed Lighting And Customizable Width Waterproof
| Place of Origin | China |
|---|---|
| Brand Name | HB-DECOR |
| Certification | FSC、LEED、GREENGUARD |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 100m² |
| Price | Negotiable |
| Delivery Time | 10days after receive deposit |
| Payment Terms | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability | 40CONTAINERS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Outdoor Wpc Wall Panel | Application | Concealed Lighting Walls |
|---|---|---|---|
| Length | Customizable | Flute Depth | 3mm , 5mm , Etc |
| Thickness | 10mm , 12mm , 15mm , 20mm , Etc | Widt | 100mm-300mm （ Customizable ） |
| Texture | Wood Grain , Matte , Glossy , Relief , Etc | Waterproof Rating | Water Absorption Rate <0.5% |
| Eco-Certifications | FSC、LEED、GREENGUARD | Material | WPC |
| Highlight | Customizable Width Wpc Wall Panel,Waterproof Wpc Wall Panel,Outdoor Wpc Wall Panel |
||
Product Description
Outdoor Wpc Wall Panel Wpc Board Wall Paneling Concealed Lighting Walls
Engineered for premium outdoor applications, HB's WPC wall panel system combines durable cladding with innovative concealed lighting solutions. Our 18mm thick, high-density panels feature:
• Weatherproof Construction - IP65 rated lighting channels
• Dual-Function Design - Seamless integration of cladding and illumination
• Material Performance - 0.03% water absorption, Class A fire rating
The system includes pre-routed channels for LED strip installation, with optional dimmable controls and color temperature adjustment (2700K-6500K).
Specification
| Category | Parameter | Specification |
|---|---|---|
| Material Composition | Wood Fiber Content | 60-65% |
| Polymer Matrix | HDPE + PP Composite | |
| Additives | UV Stabilizers, Fire Retardants, Fungicides | |
| Physical Properties | Density | 1.25-1.35 g/cm³ |
| Water Absorption | ≤0.3% (24h immersion) | |
| Thermal Expansion | 0.07-0.12 mm/m·°C (20-60°C) | |
| Mechanical Performance | Flexural Strength | ≥25 MPa |
| Impact Resistance | ≥8 kJ/m² | |
| Fire Performance | Fire Rating | B-s1,d0 (EN 13501-1) |
| Flame Spread | Class C (ASTM E84) | |
| Weather Resistance | UV Stability | ΔE≤3 after 3000h QUV |
| Freeze-Thaw Cycling | No cracking after 50 cycles | |
| Dimensions | Panel Width | 150/200/250 mm (±0.5mm) |
| Panel Length | 2400-6000 mm (customizable) | |
| Thickness | 12/15/20 mm (±0.3mm) | |
| Flute Depth | 3/5/8 mm (±0.2mm) | |
| Installation | Mounting System | Hidden Clip/Aluminum Rail |
| Maximum Span | 600mm (20mm thickness) | |
| Certifications | Environmental | FSC, LEED compliant |
| Quality | ISO 9001, ISO 14001 |
Application
Commercial & Hospitality:
✔ Hotel Facade Accent Lighting
✔ Restaurant Outdoor Feature Walls
✔ Retail Storefront Branding Walls
Landscape Architecture:
✔ Garden Perimeter Illuminated Partitions
✔ Poolside Ambient Lighting Walls
✔ Pathway Guidance Screens
Urban Design:
✔ Public Plaza Decorative Partitions
✔ Transit Station Wayfinding Walls
✔ Building Entrance Light Canvases
Residential Premium:
✔ Luxury Villa Perimeter Lighting
✔ Rooftop Terrace Mood Walls
✔ Smart Home Control Surfaces
