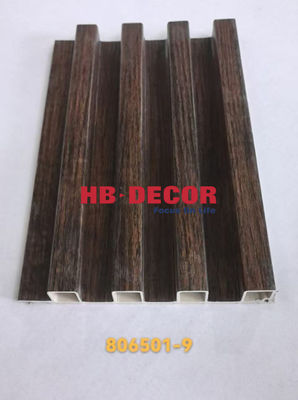

Wpc Louvers Wall Panel Customizable Wpc Wall Panel Board For Eco Friendly Wpc Wall Cladding Outdoor
| Place of Origin | China |
|---|---|
| Brand Name | HB-DECOR |
| Certification | FSC、LEED、GREENGUARD |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 100m² |
| Price | Negotiable |
| Delivery Time | 10days after receive deposit |
| Payment Terms | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability | 40CONTAINERS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wpc Wall Panel Board | Eco-Certifications | FSC、LEED、GREENGUARD |
|---|---|---|---|
| Thickness | Customizable | Widt | Customizable |
| Application | Wpc Wall Cladding Outdoor | Material | WPC |
| Highlight | Customizable Wpc Louvers Wall Panel,Eco Friendly Wpc Louvers Wall Panel,Outdoor Wpc Louvers Wall Panel |
||
Product Description
Wpc Wall Panel Board Wpc Louvers Wall Panel Wpc Wall Cladding Outdoor
HB presents an engineered WPC wall panel system combining structural cladding boards with integrated louver functionality for high-performance exterior applications. Our patented multi-layer co-extrusion technology delivers:
Key Technical Attributes:
• Material Composition - 60% wood fiber reinforced HDPE core with ASA protective surface layer
• Weather Resistance - Class 4 UV stability (ISO 4892-3), -30°C to 80°C operational range
• Structural Performance - 18MPa flexural strength (EN 310), 650kg/m³ density
System Features:
Integrated louver panel option (15-45° adjustable)
Concealed aluminum substructure compatibility
Pre-finished in 8 RAL-standard colors
Fire rating up to B-s1,d0 (EN 13501-1)
Applications
✔ Facade Cladding Systems
✔ Adjustable Solar Louvers
✔ Balcony Privacy Screens
✔ Terrace Wind Barriers
✔ Poolside Deck Walls
✔ Exterior Feature Walls
✔ Ventilated Rainscreens
✔ Landscape Partition Walls
✔ Commercial Perimeter Screening
✔ Noise-Reduction Barriers
Specification
| Category | Parameter | Details |
|---|---|---|
| Material | Composition | 60-70% Wood Fiber, 30-40% HDPE/PP/PVC, UV Stabilizers, Fire Retardants |
| Density | 1.2-1.4 g/cm³ | |
| Dimensions | Length | 2,000-6,000 mm (Customizable) |
| Width | 100-300 mm (Standard: 150mm, 200mm) | |
| Thickness | 10mm, 12mm, 15mm, 20mm (±0.3mm Tolerance) | |
| Flute Depth | 3mm, 5mm, 8mm (Vertical/Horizontal Grooves) | |
| Performance | Water Absorption | <0.5% (24h Immersion) |
| Thermal Expansion | 0.05-0.1% per °C (30-80°C Range) | |
| Fire Rating | Class B1 (GB8624-2012) / UL94 V-2 | |
| UV Resistance | ≥5 Years Fade-Free (QUV Accelerated Testing) | |
| Surface | Color Options | Wood Grain (Teak, Oak, Gray, etc.), Custom RAL/Pantone Matched |
| Texture | Embossed, Smooth, Brushed | |
| Installation | Mounting System | Hidden Clips, Aluminum Rails, or Direct Screw Fixing |
| Battens Spacing | 300-600 mm (Recommended for Load Capacity) | |
| Certifications | Standards | ISO 9001, ISO 14001, CE, FSC® (Optional) |
| Packaging | MOQ | 100 m² (Palletized, Weatherproof Wrapping) |
| Lead Time | 15-30 Days (Depending on Customization) |
