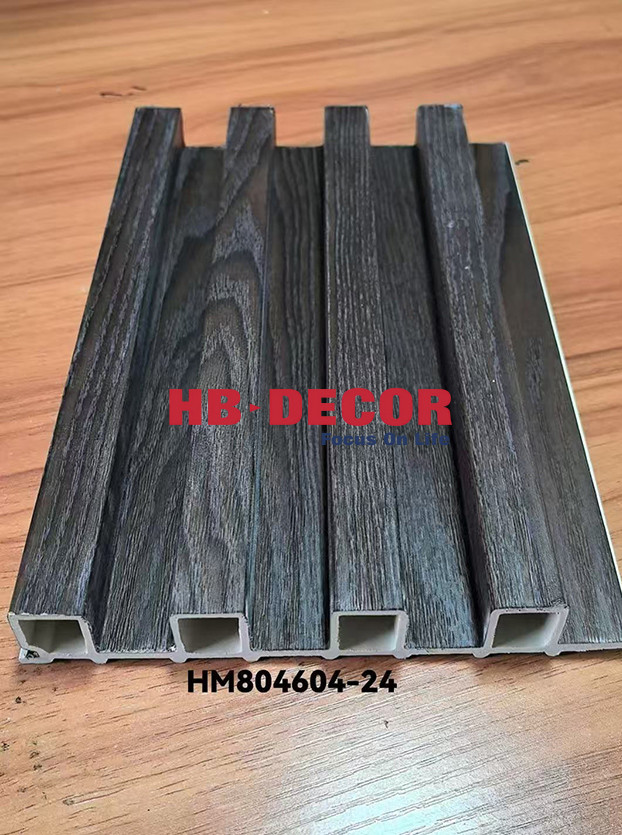

10mm Thickness Wpc Fluted Wall Panel Waterproof For Exterior
| Place of Origin | China |
|---|---|
| Brand Name | HB-DECOR |
| Certification | FSC、LEED、GREENGUARD |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 100m² |
| Price | Negotiable |
| Delivery Time | 10days after receive deposit |
| Payment Terms | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability | 40CONTAINERS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wpc Wall Panel Waterproof | Thickness | 10mm , 12mm , 15mm , 20mm , Etc |
|---|---|---|---|
| Application | Wpc Panels For Exterior | Widt | Customizable |
| Feature | Waterproof | Material | WPC |
| Highlight | Waterproof wpc fluted wall panel,10mm Thickness WPC Wall Panel,Exterior wpc fluted wall panel |
||
Product Description
Wpc Wall Panel Waterproof Wpc Panels For Exterior
HB's advanced WPC Wall Panel system delivers uncompromising waterproof protection for demanding exterior applications. Our proprietary co-extrusion technology bonds a high-density polymer cap layer (0.8mm) to a structural wood-composite core, achieving:
Performance Advantages:
• 100% waterproof construction (0% water absorption per ASTM D570)
• Class 1 fire rating (BS EN 13501-1)
• Impact resistance (50kJ/m² per EN 12664)
Technical Specifications:
Panel Dimensions: 3000x300x20mm (custom lengths to 6000mm)
Surface Treatment: UV-cured acrylic coating (25μm)
Thermal Movement: 0.8mm/m/°C
Wind Load Rating: 3.5kPa (75mph)
Ideal for:
• Coastal zone buildings (salt spray resistant)
• High-humidity environments
• Vertical garden substructures
• Commercial wet areas (pool surrounds, spas)
Certified to EN 15534-1 with 20-year limited warranty against water damage. Includes HB's patented Interlock+ mounting system for seamless installation with concealed drainage channels.
Applications
Coastal Building Facades
High-Rise Exterior Cladding
Swimming Pool Surrounds
Spa & Wellness Center Walls
Balcony & Terrace Screens
Hotel & Resort Exteriors
Commercial Wet Areas
Vertical Garden Backings
Marine & Waterfront Structures
High-Humidity Zone Partitions
Specification
| Category | Parameter | Details |
|---|---|---|
| Material | Composition | 60-70% Wood Fiber, 30-40% HDPE/PP/PVC, UV Stabilizers, Fire Retardants |
| Density | 1.2-1.4 g/cm³ | |
| Dimensions | Length | 2,000-6,000 mm (Customizable) |
| Width | 100-300 mm (Standard: 150mm, 200mm) | |
| Thickness | 10mm, 12mm, 15mm, 20mm (±0.3mm Tolerance) | |
| Flute Depth | 3mm, 5mm, 8mm (Vertical/Horizontal Grooves) | |
| Performance | Water Absorption | <0.5% (24h Immersion) |
| Thermal Expansion | 0.05-0.1% per °C (30-80°C Range) | |
| Fire Rating | Class B1 (GB8624-2012) / UL94 V-2 | |
| UV Resistance | ≥5 Years Fade-Free (QUV Accelerated Testing) | |
| Surface | Color Options | Wood Grain (Teak, Oak, Gray, etc.), Custom RAL/Pantone Matched |
| Texture | Embossed, Smooth, Brushed | |
| Installation | Mounting System | Hidden Clips, Aluminum Rails, or Direct Screw Fixing |
| Battens Spacing | 300-600 mm (Recommended for Load Capacity) | |
| Certifications | Standards | ISO 9001, ISO 14001, CE, FSC® (Optional) |
| Packaging | MOQ | 100 m² (Palletized, Weatherproof Wrapping) |
| Lead Time | 15-30 Days (Depending on Customization) |
